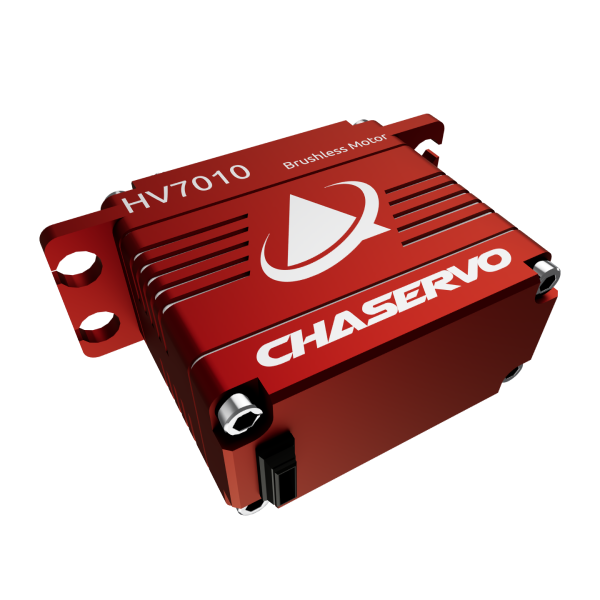

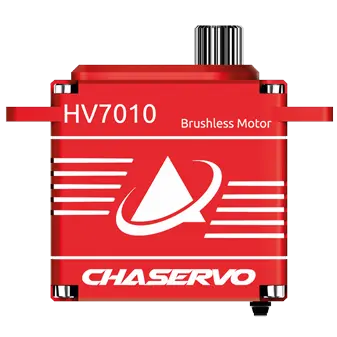

The 20mm HV7010 high-performance servo has been trimmed for maximum performance and speed. Primary use being large 3D aerobatic models, large jets and alternative heavy duty applications.
If you're looking for the best High Voltage (8.4V) servo for your next project look no further, this unit will hold 70kg and move at 0.10 sec/60 @ 8.4V

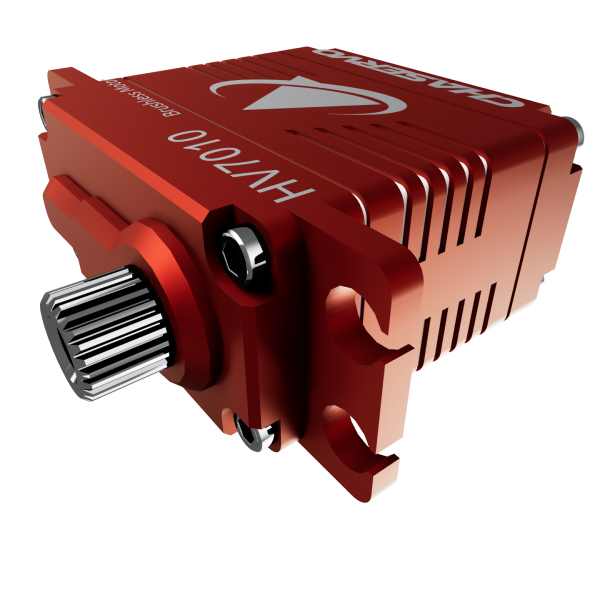

The 8mm T25 output is designed for the toughest loads and ideal power transmission to high stress single point contacts, e.g. rudders on 120-200cc+ aerobatic models. The housing parts are made of high-alloy aluminum and, in conjunction with six ball bearings and hardened steel gears, offers precise and backlash-free control.
The built-in contactless hall sensor offers ideal conditions for long-lasting continuous operations under high vibrations.

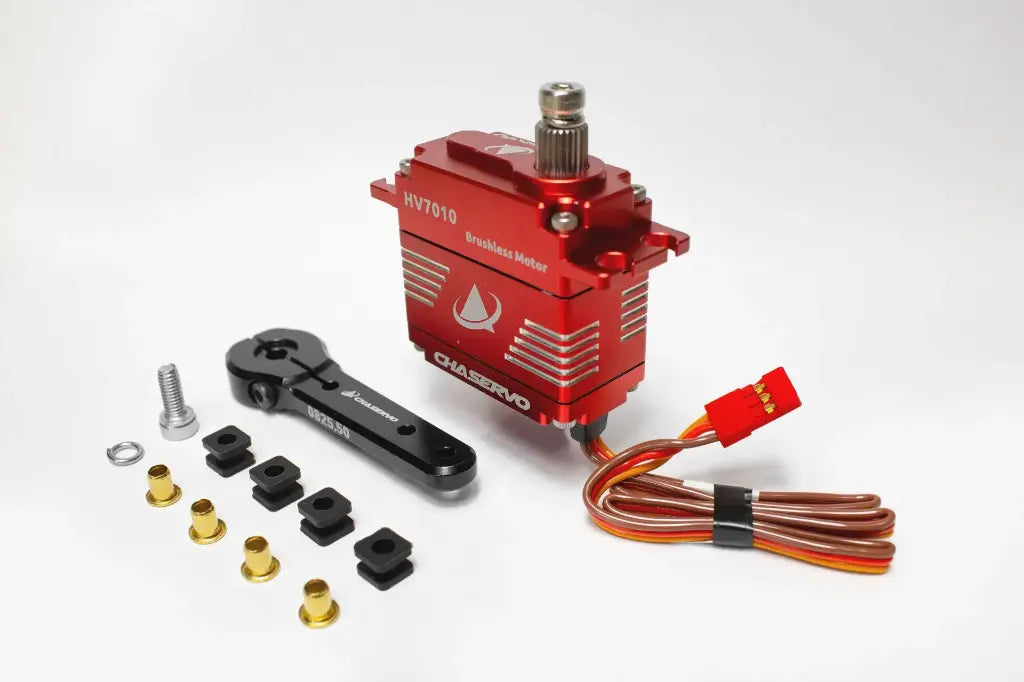

Provided with the servo is a dual locking aluminium servo arm drilled for 50 & 40mm connection points. Please note mounting screws are not included, we highly recommend using Dubro Heavy Duty Screws (Part 893) or similar.
Specifications
