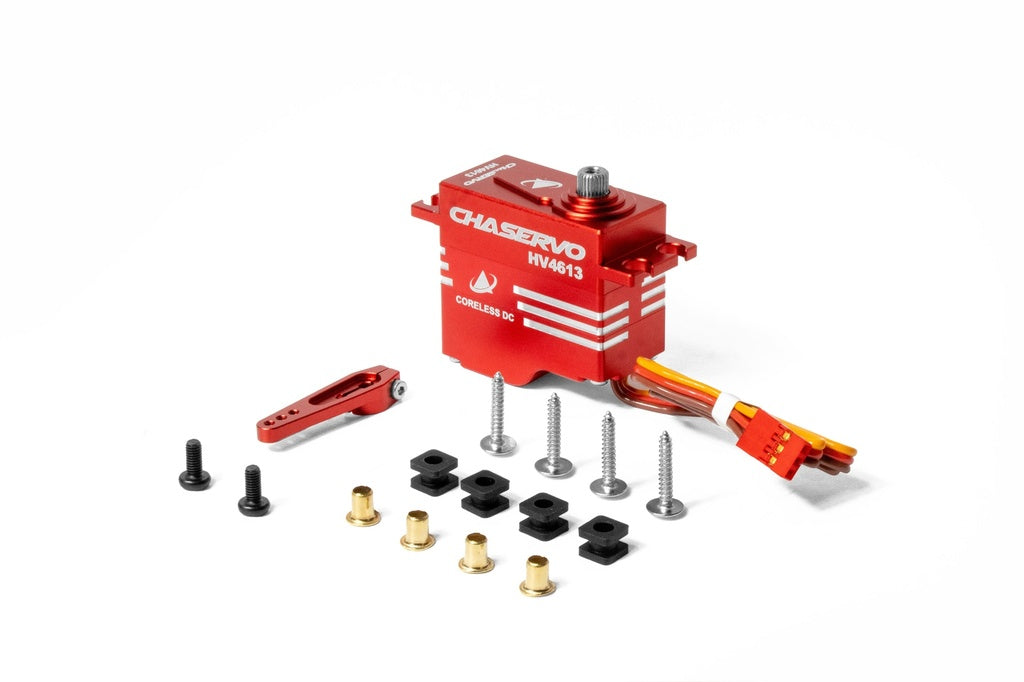

Designed for the highest demands – the CHAServo HV4613 combines precision, power, and reliability in a top-class servo. Perfect for the discerning model builder who doesn't want to compromise.
With its impressive torque, the HV4613 delivers excellent performance in every application – be it model aircraft, RC cars, or even robotics. Compatible with a wide voltage range from 6V to 8.4V.
The robust construction with durable metal gears retains its shape and function even under heavy loads. Ideal for continuous use. With the finest tuning and high holding torque, the servo ensures precise movement and fine resolution.
The use of a high-quality aluminum housing provides additional stability and heat dissipation, Ideal for a wide variety of model projects – from airplanes to boats to cars
Specifications![]()
- Rated Voltage: DC 7.4V
- Voltage Range: DC 4.8 - 8.4V
- Output Shaft: 25T, 6mm
- Position Sensor: Potentiometer
- Motor: Coreless DC
- Frequency: 1520us / 333Hz
- Pulse Range: 500us - 2500us
- Dimensions: 40.5 x 20 x 40mm
- Weight: 81g
- Case: Aluminium
- Gears: Full Metal
Rated Output:
Holding Torque
- 4.8V - 32kg/cm
- 6.0V - 40kg/cm
- 7.4V - 46kg/cm
- 8.4V - 50kg/cm
Output Torque
- 4.8V - 20kg/cm
- 6.0V - 25kg/cm
- 7.4V - 30kg/cm
- 8.4V - 33kg/cm
No-load Speed
- 4.8V - 0.20sec/60
- 6.0V - 0.16sec/60
- 7.4V - 0.13sec/60
- 8.4V - 0.12sec/60
Max Current
- 6.0V - 4.85A
- 7.4V - 5.62A
- 8.4V - 6.45A
