FrSky Advanced Engine Suite

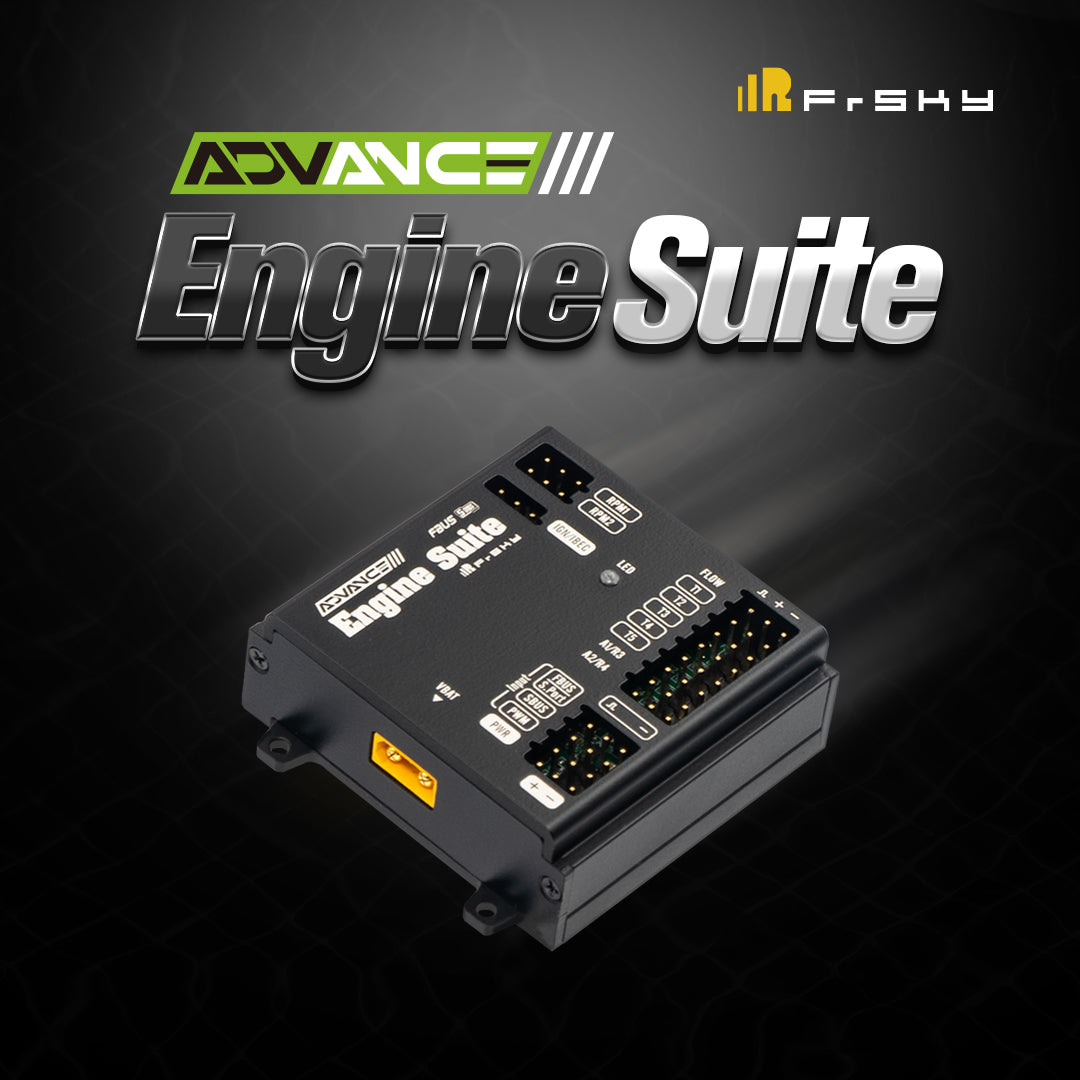

Advanced Engine Suite (AES) is a multi-functional management box suitable for application in airplanes equipped with a single or multiple IC engines.

Through the VBAT (XT30) power input port, users can use one battery to power all connected devices, eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a safety solution to avoid potential risks caused by interference between the connected ignition and receiver devices.

The AES module is equipped with a wealth of sensor interfaces, including 2 RPM sensor ports, 1 flowmeter sensor port, and 5 temperature sensor ports. In addition, AES also provides 2 AD ports, allowing users to flexibly use different types of AD devices required in your airplane. At the same time, through the FBUS/S.Port feature of the connected receiver, users can monitor the telemetry data in real-time on the transmitter to know the aircraft’s operating status.

• Ignition Battery Eliminator Design
• Anti-interference Capability between Ignition & Receiver Parts
• 5 Ports for Temperature Sensors
• 2 Ports for RPM Sensors
• 2 Ports for AD/RPM Sensors
• 1 Port for Flowmeter Sensors
• 1 Powering Port for Receiver
• 1 Powering Port for Ignition Kill Switch Unit
• Signal Input Ports for FBUS/S.Port (Auto Recognition), SBUS, and PWM
• 1 Battery Input Port with XT30 Connector (Input Range: 4.5-13V)
• Real-Time Configuration Capability (by S.Port of ETHOS radio or FBUS capable receivers)

• Dimension: 50×46.4x18mm (L×W×H)
• Weight: 53.5g
• Battery Voltage Input Range: 4.5-13V
• Battery Input Connector: XT30
• IGN (Ignition Port) Voltage Output Range: 4.5-13V (Sync with the input voltage settings of VBAT.)
• Operating Current: 20mA@5V
• Signal Voltage Level
  – RPM1/RPM2 Port: 3V-12V
  – Flow Port: 3.3V
  – AD1/AD2 Port: 0-3.3V
